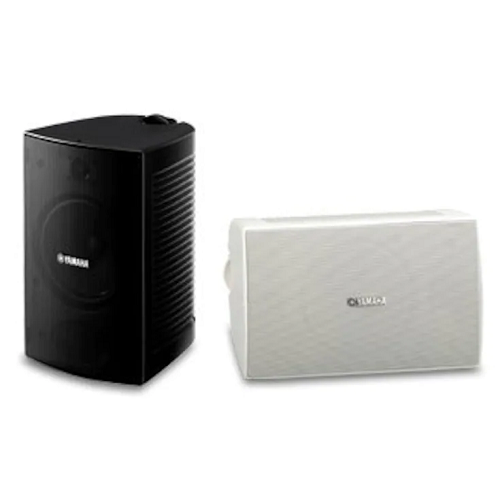

Thông số kỹ thuật:
- General specifications
- Frequency range (-10dB): 100Hz – 20kHz
- Components: LF: 4″(100mm) cone driver / HF: 1″(25mm) balanced dome tweeter
- Crossover: 15kHz
- Power rating: NOISE: 15W / PGM: 30W / PEAK: 60W
- Nominal impedance: 8Ω
- SPL: Sensitivity (1W; 1m on axis): 88dB SPL / Peak (Calculated): 106dB SPL (60W)
- I/O connectors: 2 pairs of barrier strip (parallel-wired *Screw size: M3, Terminal Space: 6mm)
- Cabinet material: HIPS, 94-HB
- Finish: VS4: Black, VS4W: White
- Dimensions: W: 152 mm (6″) / H: 243 mm (9 9/16″) / D: 172 mm (6 3/4″)
- Net weight: 1.9kg (4.2lbs)
- Accessories: U-bracket, Owner’s Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS
- Others: –
- Độ bao phủ danh định: H: 110 / V: 110
- Điểm nối biến áp: 100V: 15W, 7.5W, 3.8W / 70V: 15W, 7.5W, 3.8W, 1.9W
- Hình dáng: Rectangular
- Phụ kiện lắp đặt và treo: U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes)
- Không thấm nước: IEC60529 IPX3 splash proof rating
