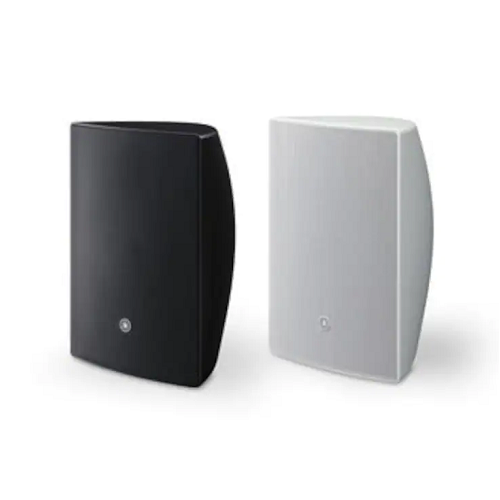

Thông số kỹ thuật:
- General specifications
- Speaker type: 2-way, Bass-reflex
- Frequency range (-10dB): 51Hz – 20kHz
- Nominal coverage: H: 100° / V: 100°
- Components: LF: 8″ Cone / HF: 1″ Soft dome
- Crossover: 2.8kHz
- Power rating: NOISE: 90W / PGM: 180W
- Nominal impedance: 8Ω
- Transformer taps: 100V: 60W (170Ω), 30W (330Ω), 15W (670Ω) / 70V: 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)
- SPL: Sensitivity (1W; 1m on axis): 91dB SPL / Peak (Calculated): 117dB SPL
- I/O connectors: 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)
- Shape: Rectangular
- Cabinet material: ABS
- Finish: VXS8:Black / VXS8W:White
- Waterproof: IP35
- Dimensions: W: 278mm (10.9″) / H: 430mm (16.9″) / D: 239mm (9.4″)
- Net weight: 8.2kg (18.1lbs)
- Accessories: Wall / Ceiling mount bracket, Terminal cover
- Others: Packaged in pairs
- Certificate: UL1480, NFPA70, CE, EAC, RoHS
- EN54-24 compliance: –
